GI & MS Weldmesh,

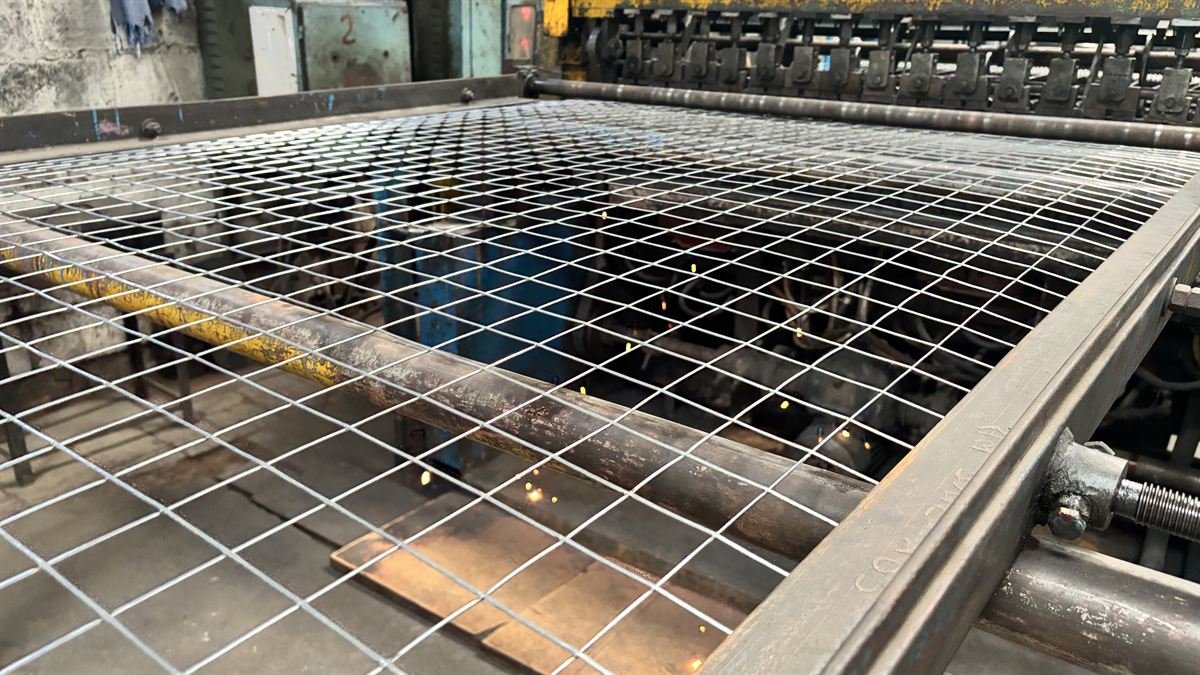

Rolled Off Our Own Line.

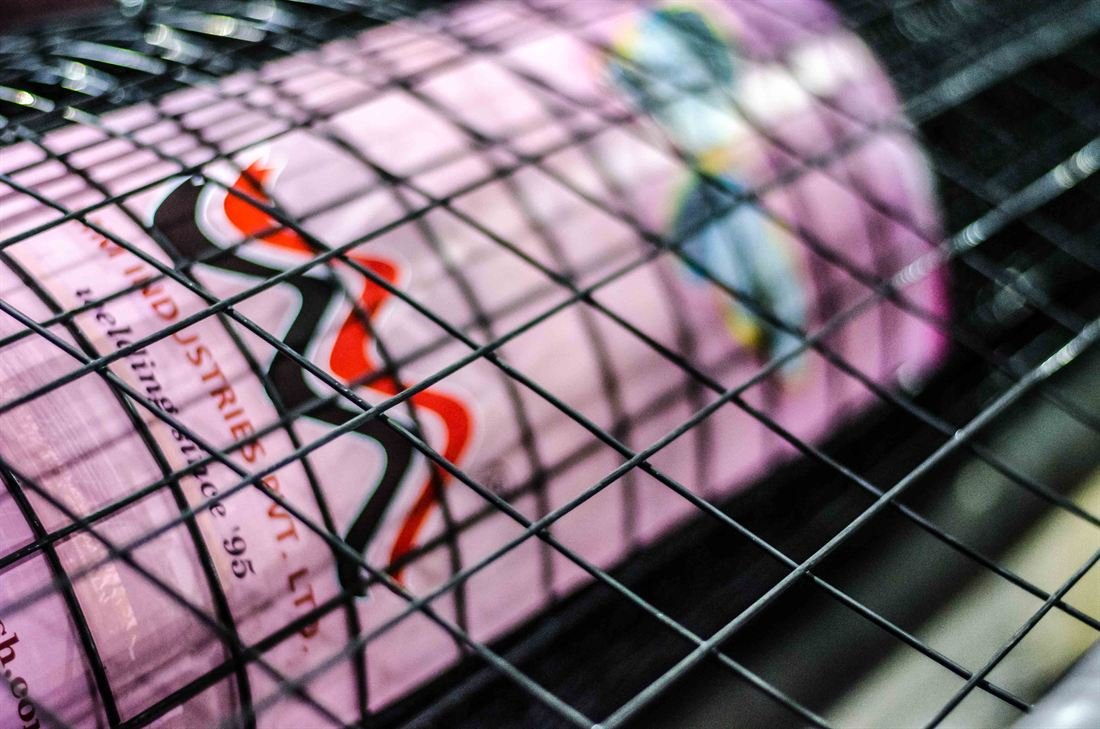

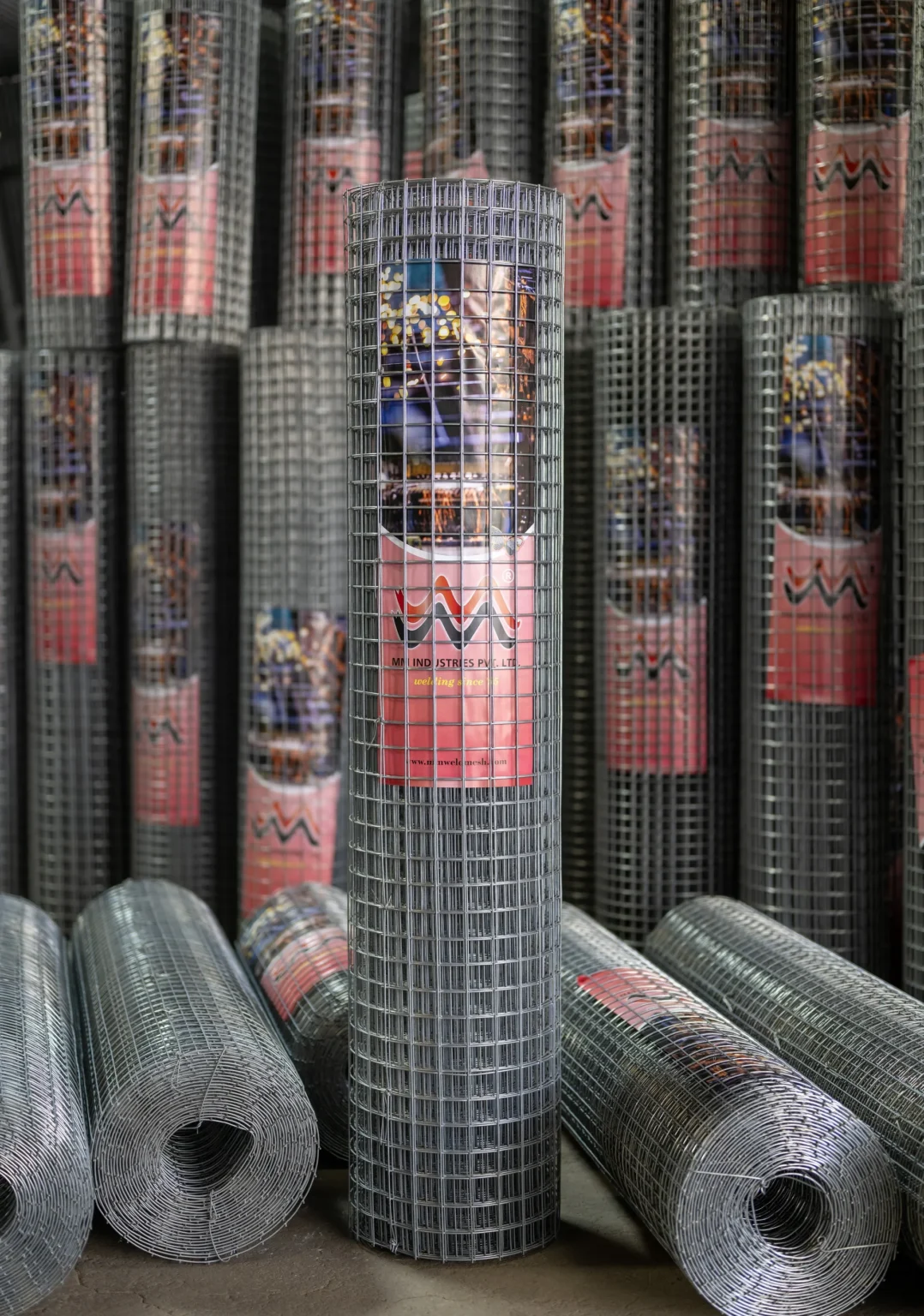

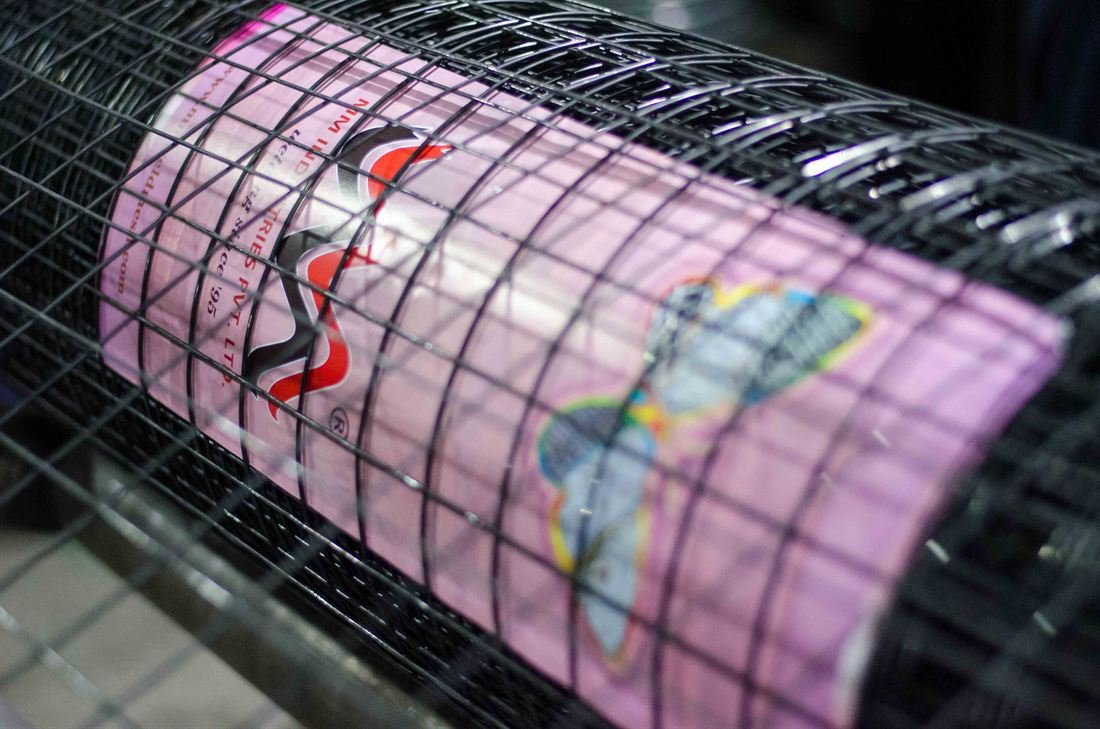

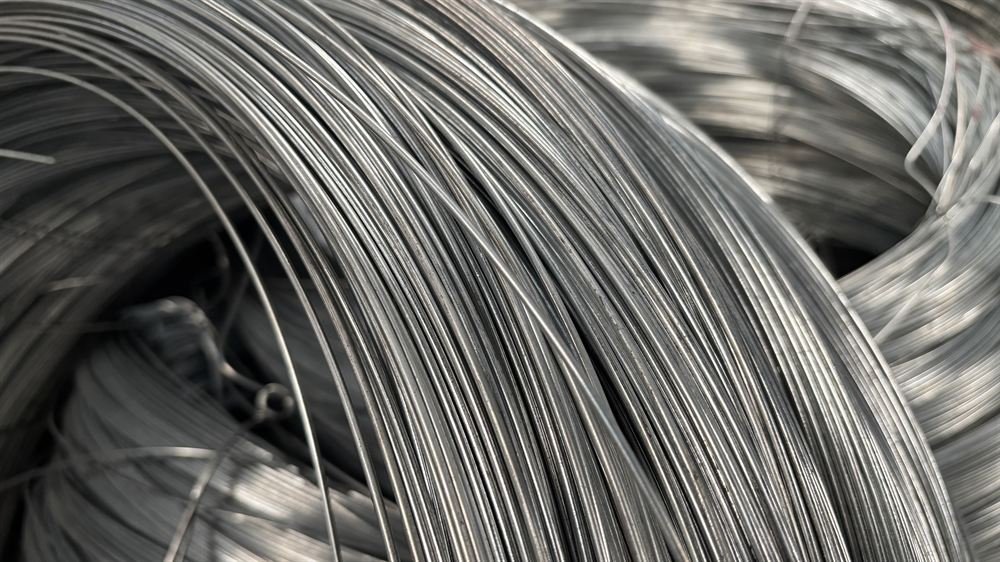

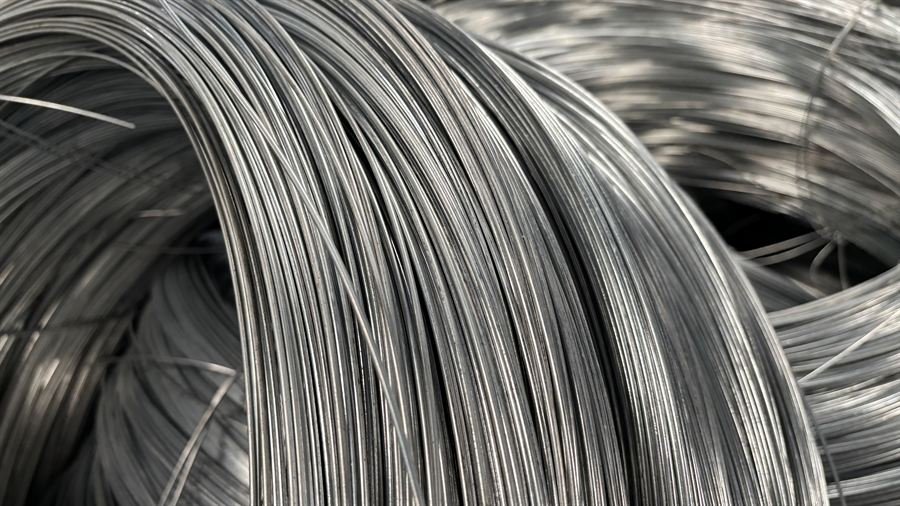

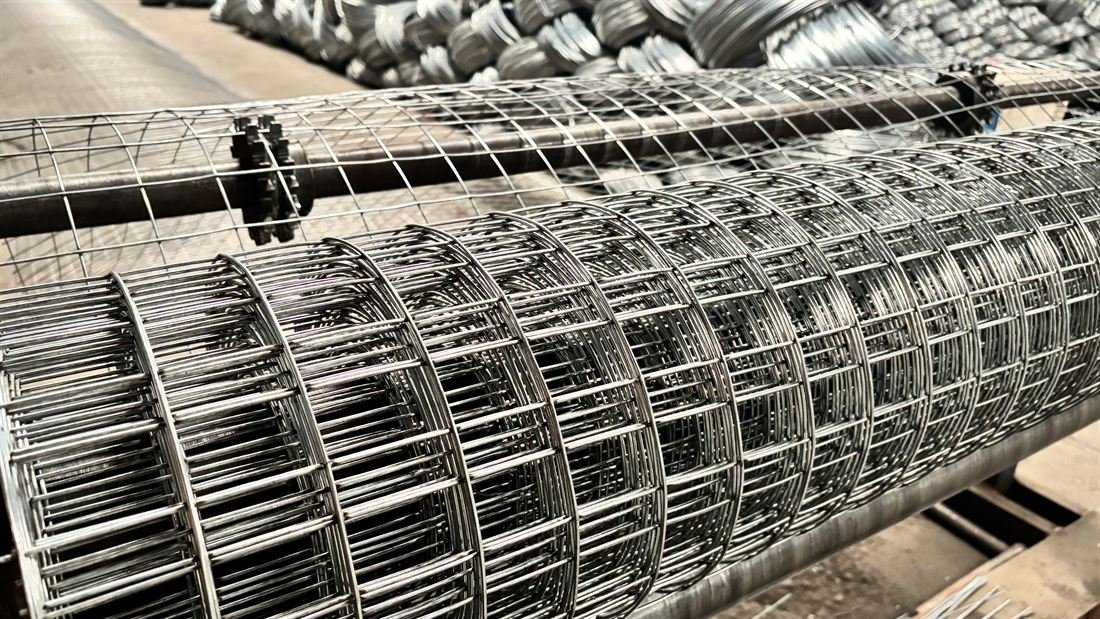

Same welded wire mesh, different corrosion protection. GI weldmesh carries a zinc coating that corrodes in place of the steel underneath, so it survives outdoors without paint. MS weldmesh is plain mild steel — cheaper at the same wire diameter, and the right choice when the mesh is embedded in concrete, kept indoors, or painted after fabrication. If it will sit in rain, humidity or coastal air, specify GI.

Standard sizes held in stock can be supplied in small quantities — a few rolls is fine. Custom mesh sizes, non-standard gauges and special panel dimensions need a production run, so a minimum applies and it varies with the specification. Send your requirement and we will tell you the exact minimum for that item rather than quoting a blanket figure.

Ready-stock sizes are typically dispatched within 24–48 working hours of order confirmation. Custom manufacturing depends on run size and current line loading; the committed date goes in your quotation in writing. Transit time on top depends on distance from Raipur — we give you both numbers separately so you can plan the site date rather than guess it.

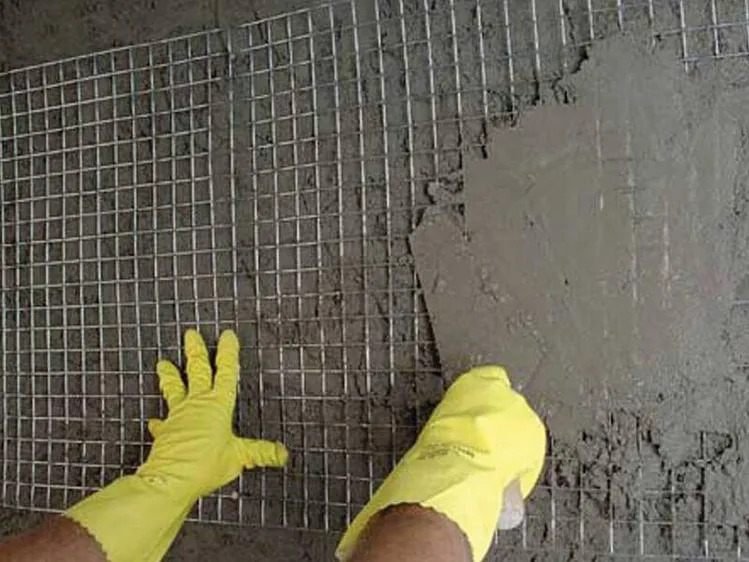

Yes, all three, and they are closer to each other than they look. Guniting wire mesh for shotcrete, slope stabilisation, canal lining and tunnel faces is normally a 25 × 25 mm to 50 × 50 mm opening in 1.6–3 mm GI wire — light enough to pin to the face, open enough for the sprayed mortar to key through. Fireproofing wire mesh reinforces spray-applied fire protection on structural steel, and weldmesh for fireproofing wall build-ups gives the render a mechanical key; that is usually 12.5 × 12.5 mm to 25 × 25 mm in GI. Insulation wire mesh is a retainer rather than a reinforcement — it holds mineral wool and lagging against boilers, ducting, furnace walls and cold-store panels, in the same fine-opening GI range. Tell us the substrate and the working temperature and we will fix the wire diameter and coating.

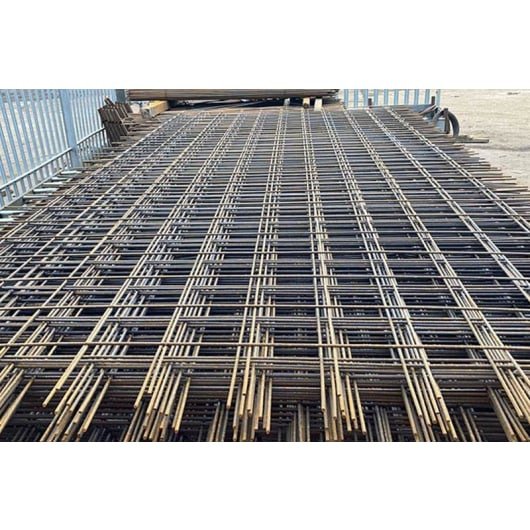

For reserve water tanks, underground sumps and reservoir walls, the reinforcement mesh sits in permanently damp concrete, so we normally steer you to GI rather than plain MS even though MS is cheaper on the day — a 75 × 75 mm or 100 × 100 mm opening in 3–4 mm is the usual starting point. For cement road construction, approach slabs and industrial hardstanding, 100 × 100 mm in 3–4 mm is standard, and the mesh is there to hold shrinkage cracking together across a long pour rather than to carry structural load. Send the slab thickness, the pour area and the drawing reference and we will confirm the fabric against it before you order.

Yes — this is normal work here, not an exception. Send the mesh opening, wire diameter, roll or panel dimensions and finish. If it is inside our production envelope we quote it directly; if it is not, we will say so and suggest the nearest specification that performs the same job.

Price is driven by wire diameter, mesh opening, GI or MS, and total tonnage — and steel rates move, so any figure quoted without your specification is meaningless. Send mesh size, gauge and quantity and you get a firm rate per roll or per square metre, with weight per roll and freight shown separately. Rates are normally held for 7 days.

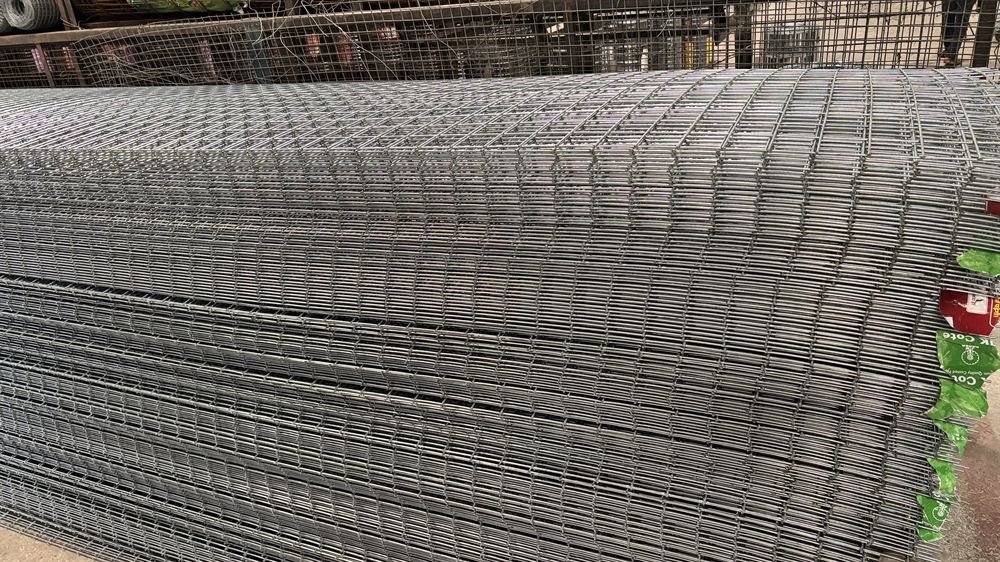

Yes. Tonnage orders are scheduled as dedicated production runs so the full quantity arrives to a plan rather than trickling in over weeks. For project supply we can align dispatch to your pour or erection schedule, and split deliveries across site locations.

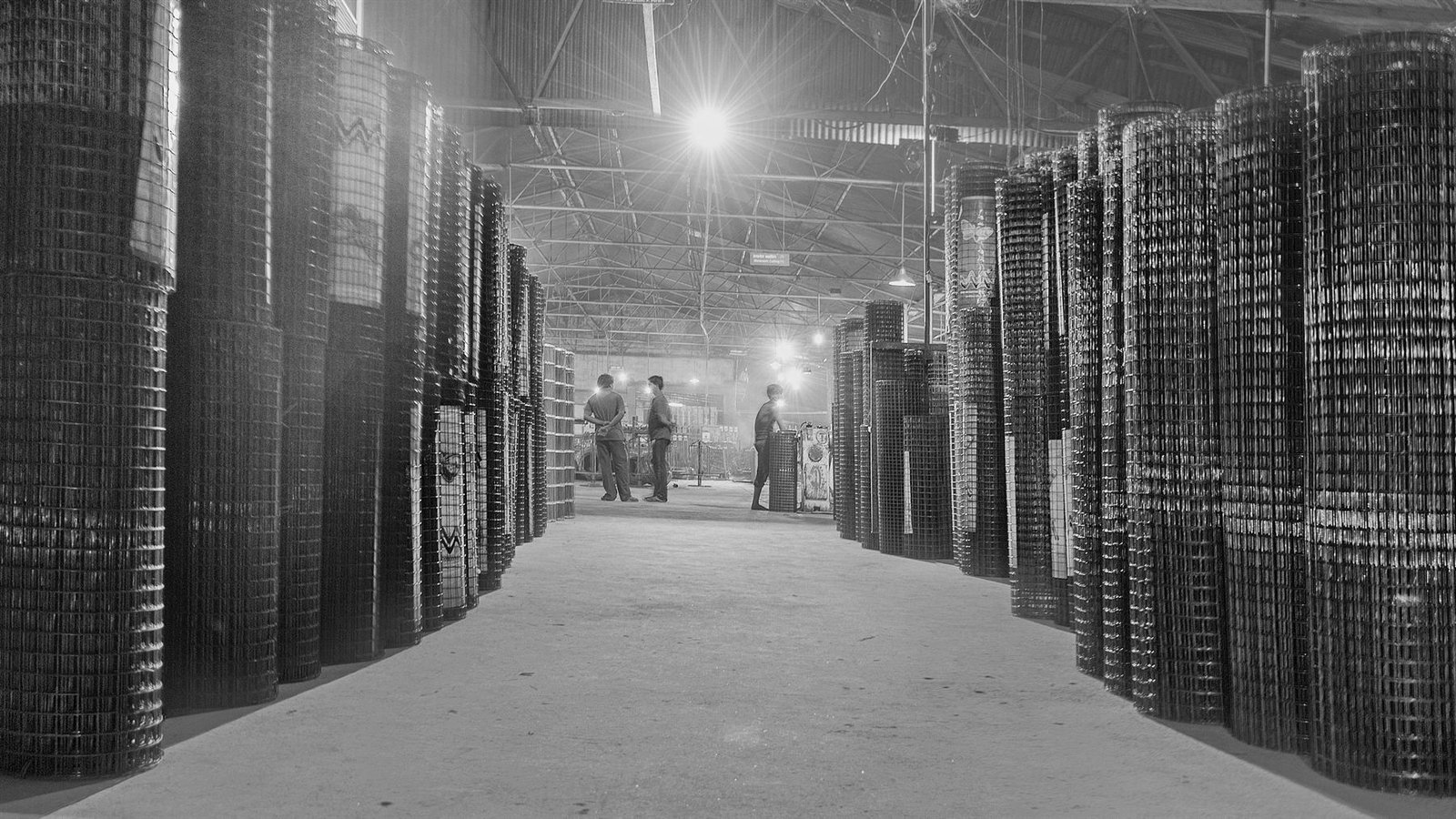

Yes — pan-India. We manufacture in Raipur and dispatch across the country, with a dealer network covering 100+ cities for smaller top-up quantities. Central India keeps freight cost reasonable in most directions. Give us the delivery city and freight is quoted as a separate line.

Yes. For genuine project and dealer enquiries we send a physical sample of the mesh size and gauge you are considering, so your team can check the weld and the finish before committing a purchase order. Ask for it with your enquiry.

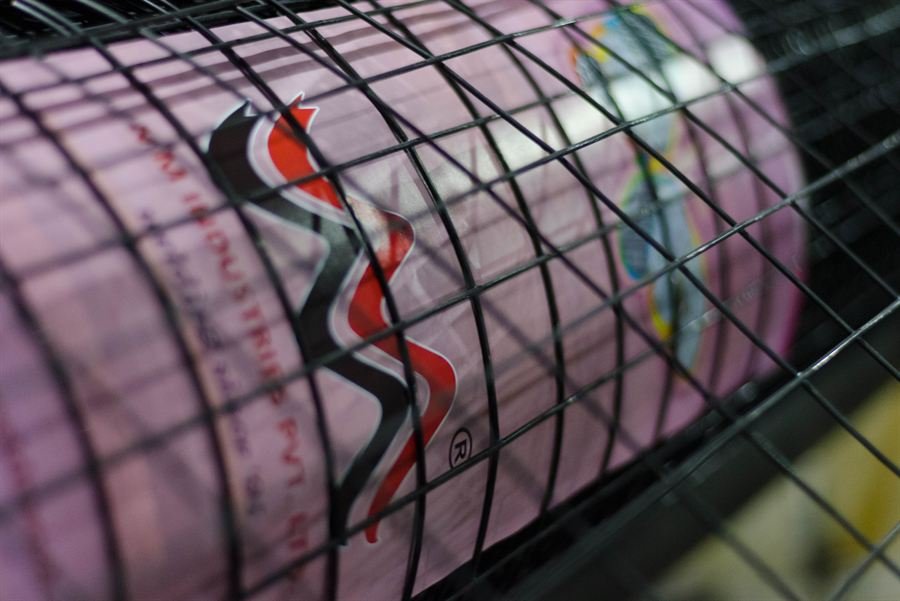

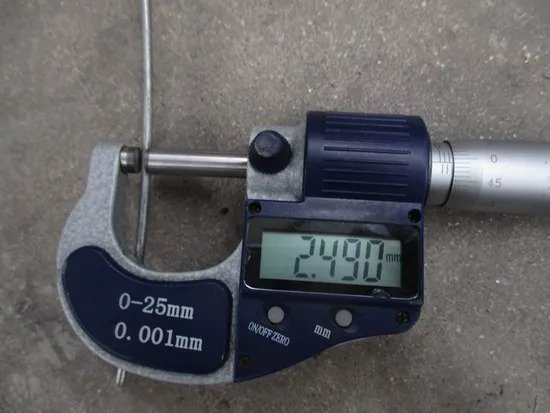

Welded mesh is manufactured with reference to IS 4948 for general-purpose welded wire fabric, and IS 1566 where hard-drawn steel wire fabric for concrete reinforcement is specified. We operate an ISO 9001 quality system, and MM Industries is CRISIL rated. Test certificates covering wire diameter, mesh pitch and weld strength are available with dispatch on request.

Four things: mesh opening (e.g. 50 × 50 mm), wire diameter (e.g. 3.0 mm), GI or MS, and quantity with roll or panel size. Delivery city too, for freight. If you only have a drawing or a photo of existing mesh, send that on WhatsApp — we can usually work the specification out from it.

Yes. Guniting wire mesh is normally a 50 × 50 mm opening in 2–3 mm wire, fixed to the face before shotcrete is applied — slope stabilisation, canal and tunnel lining, embankments and pool shells. GI is specified where the mesh stays partly exposed or the site is wet; MS is used where it is fully encased. Tell us the coverage area in square metres and we will quote rolls and dispatch together.

Yes, both. Fireproofing wire mesh retains spray-applied fire protection on structural steel and forms weldmesh for fireproofing wall build-ups — typically 25 × 25 or 50 × 50 mm in 1–2 mm GI wire, light enough to wrap a section but stiff enough to hold the coating. Insulation wire mesh retains lagging on boilers, ducting, vessels and pipework, usually 25 × 25 mm in 0.7–1.2 mm GI. Both are supplied in rolls cut to your running length.

Yes — these are three of our steadiest lines. Weldmesh for reserve water tank and sump construction is usually 50 × 50 mm in 2.5–3 mm, GI where the tank is below ground or the water is treated. Weldmesh for precast wall panels runs 50 × 50 to 100 × 100 mm in 2.5–4 mm MS, cut to panel size so your yard is not trimming sheets. Weldmesh for cement road construction is normally 100 × 100 or 150 × 150 mm in 3–4 mm MS, supplied in sheets sized to the pour. Send the drawing and we will cut to it.

Yes. We work with 500+ authorised dealers across India and continue to appoint in uncovered territories. Select "Dealer / Distributor enquiry" on the form and our channel team will discuss territory, stocking terms and margins.
